3d analysis of church roof

December 6, 2017December 6, 2017Russell Davies

We have been analysing an old church roof prior to alterations. It has been modelled in 3d due to its complexity. Here are a few views of the frame and output.

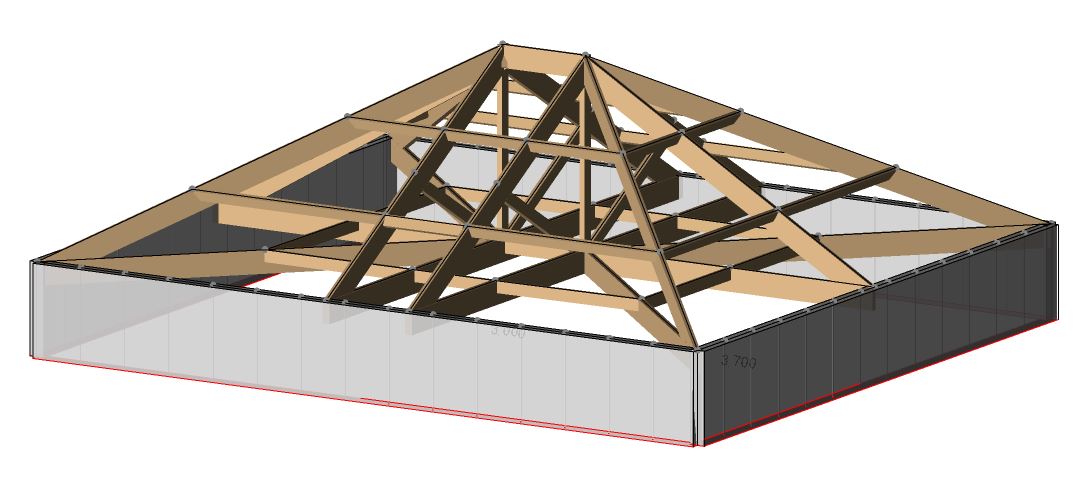

3d timber roof — 3d analysis of timber roof frame

Timber Roof analysis — Timber Roof frame

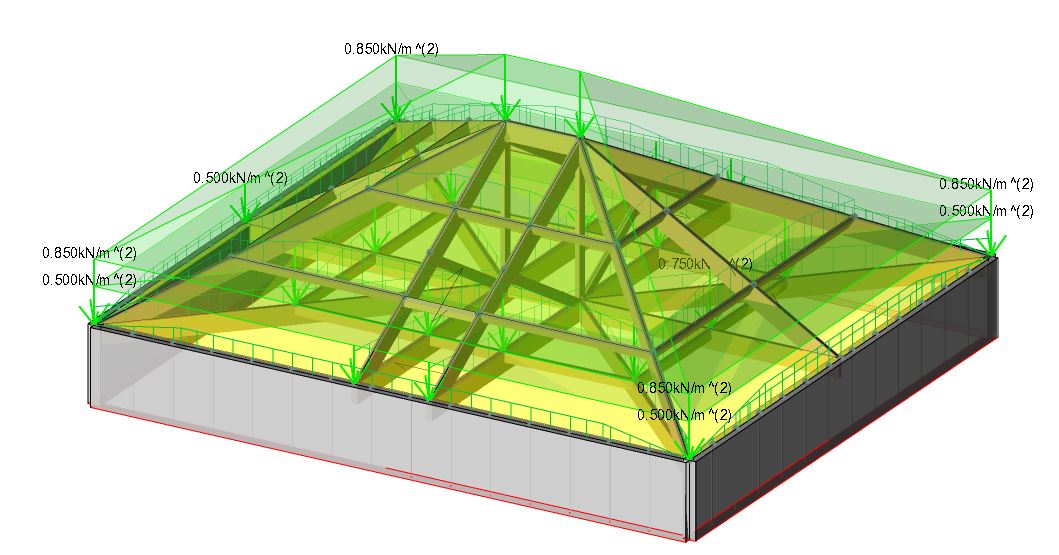

3d analysis forces — Roof frame axial forces
